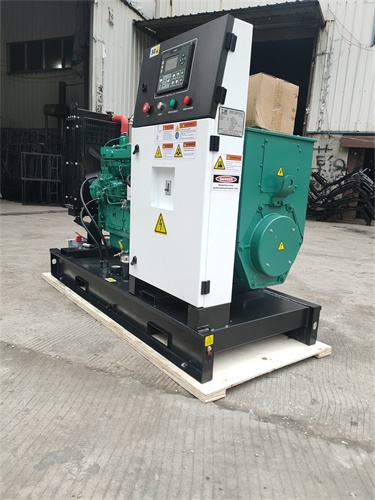

Rated 25kVA diesel generator 50Hz 3 phase diesel generator open frame home use
Product Description:
China Made Genset is a power DG generator that is made in China and is designed to provide reliable power in a variety of voltage ranges, from 220-440V. With power output ranging from 7kW to 2400KW, this generator is suitable for a wide range of applications and is ideal for residential, commercial, and industrial use. This China DG Genset also features a water cooled cooling system and a warranty of up to 1500 running hours, ensuring optimum performance and reliability. As a Power DG Generator China, this generator is designed to provide reliable and cost-effective power solutions.
Features:
- Product Name: China Made Genset Power DG Generator
- Cooling System: Water Cooled Diesel Generating Set
- Power Range: 12kW - 320KW FAWDE Power DG Generator
- Fuel Type: Diesel
- Frequency: 50/60Hz
Technical Parameters:
| Technical Specification: |
| 20kW FAWDE Generator Set Specification |
| Genset Model | TG28FW | TG28FWS |
| Open | Silent |
| Frequency | 50Hz |
| Voltage | 415/240V |
| Phase | 3 |
| Rate Current | 34.8A |
| Prime Power | 20kW / 25kVA |
| Standby Power | 22kW / 28kVA |
| Engine Model | FAWDE 4DW92-35D-YFD10W |
| Alternator Model | TGI184S20 |
| Controller | Mebay DC52D |
| Weight & Dimensions |
| Length (mm) | 1650 | 2150 |
| width (mm) | 800 | 950 |
| Height (mm) | 950 | 1100 |
| Weight (kgs) | 770 | 1000 |
| Engine Specification |
| Brand | FAWDE |
| Engine Model | 4DW92-35D-YFD10W |
| Prime power (kw) | 29 |
| Injection | Indirect |
| Aspiration | Turbocharged |
| No. of cylinders | 4 |
| Bore of Stroke (mm) | 90 x 100 |
| Displacement (L) | 2.54 |
| Cooling | water |
| Compression Ratio | 18:1 |
| Engine Oil capacity (L) | 5.75 |
| Coolant Capacity ( In radiator) | 5.75 |
| Governor | Electric |
| Air Filter | Dry Element |
| Fuel consumption | at 50Hz |
| 100% Load (L/h) | 5.3 |
| 75% Load (L/h) | 3.9 |
| 50% Load (L/h) | 2.6 |
| 25% Load (L/h) | 1.3 |
| Alternator Specification |
| Brand | Tecgen |
| Model | TGI184S20 |
| Rate Output | 25kVA |
| Pole | 4 |
| Winding Connections | Star |
| Insulation Class | H |
| Enclosure | IP23 |
| Altitude (m) | ≤1000 |
| Voltage Regulator | AVR |
| Steady State Voltage Regulator | 1% |
| Bearing | Single |
| Controller System |
| Brand | Mebay |
| Model | DC52D |
| Functions | Control with AMF module |
| Static with auto. battery charger |
| Emergency stop push button |
| ATS Connection |
| OPTIONAL EQUIPMENTS |
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts |
Applications:
Chinese Diesel Generators – Tecgen China Engine Genset, Model TG28FW
Tecgen China Engine Genset, Model TG is a powerful diesel generator, providing reliable power for a variety of applications. It features a fuel type of diesel, speed of 1500/1800rpm, power prime of 20KW, frequency of 50/60Hz and a warranty of 1500 running hours. It is certified with CE/SONCAP/SASO/SGS and is supplied with a minimum order quantity of 1 unit. The price is negotiable and it is packaged in Plywood case package or By Foam and PE film package with delivery time of 15 working days. It is a reliable and durable generator with a supply ability of 400 units per month and offers great value for money.
The Tecgen China Engine Genset, Model TG is ideal for a variety of applications, including powering industrial machinery, residential and commercial buildings, hospitals, healthcare facilities, emergency power supplies, and more. It is also ideal for powering large events, such as concerts, festivals, and sporting events. It is a silent diesel generator set, providing silent operation and reducing noise pollution. It is also a great choice for remote locations, such as campsites, construction sites, and more.
The Tecgen China Engine Genset, Model TG is a reliable and durable power generator, providing reliable power for a variety of applications. It is certified with CE/SONCAP/SASO/SGS and offers great value for money. It is a silent diesel generator set, providing silent operation and reducing noise pollution. With a power range of 7kW - 2400KW, it is ideal for a variety of applications, including powering industrial machinery, residential and commercial buildings, hospitals, healthcare facilities, emergency power supplies, large events, such as concerts, festivals, and sporting events, remote locations, such as campsites, construction sites, and more.
Customization:
Customized Chinese Diesel Generators - Tecgen China Engine Genset
Tecgen China Engine Genset TG28FW offers silent generator set, power DG generator, silent diesel generator with brand name Tecgen China Engine Genset and model number TG. It has CE/SONCAP/SASO/SGS certification and the minimum order quantity is 1 unit. The price is negotiable and the packaging details are Plywood case package or By Foam and PE film package. The delivery time is 15 working days and the payment terms are T/T, L/C. It has 400 units per month supply ability and the frequency is 50/60Hz. The power range is from 12kW to 320KW and the voltage is 220-440V. The speed is 1500/1800rpm and the warranty is 1500 running hours.
Packing and Shipping:
Packaging and Shipping for Chinese Diesel Generators
Chinese diesel generators are packaged to ensure safe transport and delivery. We use the latest in packaging materials and techniques to ensure that the generator arrives in perfect condition.
We use strong cardboard boxes with foam cushioning to protect the generator from any shock or jolts during transportation. The generator is also sealed in a waterproof, airtight bag to prevent any moisture from entering the box.
We use reliable shipping companies to ensure timely delivery of your Chinese diesel generator. We offer shipping options to most destinations worldwide, depending on the size and weight of the generator.
FAQ:
Q: What is the Brand Name of the Chinese Diesel Generators?
A: The Brand Name is Tecgen China Engine Genset.
Q: What is the Model Number of the Chinese Diesel Generators?
A: The Model Number is TG28FW.
Q: Where is the Chinese Diesel Generators made?
A: The Chinese Diesel Generators are made in China.
Q: Are the Chinese Diesel Generators certified?
A: Yes, the Chinese Diesel Generators have been certified by CE/SONCAP/SASO/SGS.
Q: What is the minimum order quantity for the Chinese Diesel Generators?
A: The minimum order quantity for the Chinese Diesel Generators is 1 Unit.
