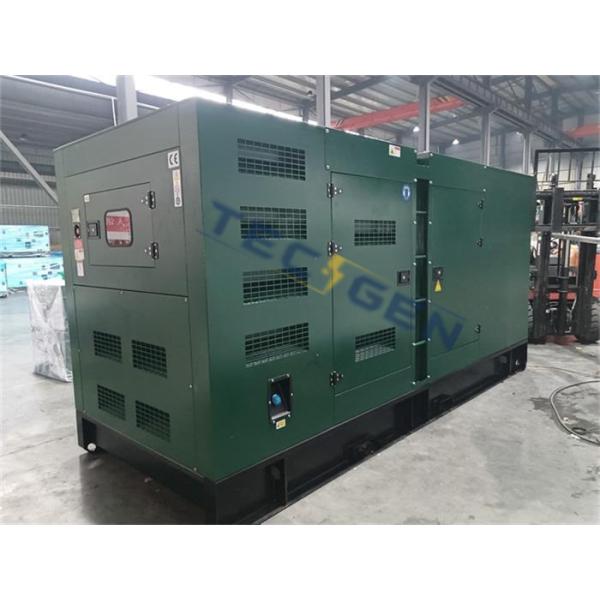

50Hz Diesel generator 352kVA diesel generating set for Back-up power electricity
Δ VMAN DIESEL GENERATORS FROM 289kVA TO 1125kVA
- Powered by genuine VMAN diesel water-cooled engines.
- Equipped with 50C radiator for silent canopy application.
- Features a brand new brushless AC alternator with 100% copper wires, Three Phase, 50/60Hz, 1500/1800RPM, H insulation class, IP23 protection grade.
- Comes with a digital control panel with emergency stop, alarm, and RS485 communication.
- Heavily-duty fabricated steel-based frame.
- Complete set mounted on the base frame with anti-vibration mounting pads.
- Includes a 24V DC electric start system with maintenance-free batteries.
- Comes with a full set of drawings, manuals, and test reports.
- Equipped with silencer, flexible connections, and elbows.
Δ TESTING ITEMS
TECGEN POWER offers a comprehensive line of brand new and high-quality products.
Each and every unit undergoes rigorous factory testing before shipment.
- Testing for parts faults
- Testing of fuel tank pressure
- Bolt tightening torque testing
- Paint thickness testing
- Voltage bearing and insulation testing
- Noise testing
- Loading Testing: 25%, 50%, 75%, 100%, 110% load to verify all control systems, alarms, and shutdown protections.
DIESEL GENERATOR TECHNICAL DATA:
| Technical Specification: |
| Generator Set Specification |
| Genset Model | TG388VM | TG388VMS |
| Open | Silent |
| Frequency | 50Hz |
| Voltage | 400/230V |
| Phase | 3 |
| Rate Current | 508.1A |
| Prime Power | 282kW / 352kVA |
| Standby Power | 310kW / 388kVA |
| Engine Model | VMAN D11 |
| Alternator Model | TGI314S280 |
| Controller | DEIF SGC-420 |
| Weight & Dimensions |
| Length (mm) | 3100 | 4000 |
| Width (mm) | 1250 | 1700 |
| Height (mm) | 1800 | 2000 |
| Weight (kgs) | 3200 | 4050 |
| Engine Specification |
| Brand | VMAN |
| Engine Model | D11 |
| Prime/Standby power (kW) | / 360 |
| Injection | Indirect |
| Aspiration | Turbo charged & intercooled (air to air) |
| No. of cylinders | 6 |
| Bore of Stroke (mm) | 128 x 142 |
| Displacement (L) | 10.964 |
| Cooling | water |
| Compression Ratio | 14.6:1 |
| Engine Oil capacity (L) | 19 |
| Coolant Capacity ( In radiator) | 19 |
| Governor | Electric |
| Air Filter | Dry Element |
| Fuel consumption | at 50Hz |
| 100% Load (L/h) | 85.66 |
| 75% Load (L/h) | 63.82 |
| 50% Load (L/h) | 43.40 |
| 25% Load (L/h) | 26.09 |
| Alternator Specification |
| Brand | Tecgen |
| Model | TGI314S280 |
| Rate Output (kVA) | 352 |
| Pole | 4 |
| Winding Connections | Star |
| Insulation Class | H |
| Enclosure | IP23 |
| Altitude (m) | ≤1000 |
| Voltage Regulator | AVR |
| Steady State Voltage Regulator | 1% |
| Bearing | Single |
| Controller System |
| Brand | DEIF |
| Model | SGC-420 |
| Functions | Control with AMF module |
| Static with auto. battery charger |
| Emergency stop push button |
| ATS Connection, RS485 Communication, BTN Function |
| OPTIONAL EQUIPMENTS |
| ATS Cabinet, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts |
- Genset Standard Accessories
- Standard 50 radiator mounted on skid
- Common steel frame with Base fuel tank
- Circuit breaker (Delixi / Aisikai)
- Non-return valve
- Shock Pad
- Forklift mouth
- Exhaust silencer
- Battery and connecting wires
- Battery charger by main supply
- RS485 communication interface
- Battery charger by main supply
- Standard tool kit
- Operation manual and document
- Genset Optional Accessories
- Engine coolant and oil heater
- Water Heater or Diesel Fuel Water Heater
- ATS and paralleling system
- Integrated Fuel Tank
- Fuel-water separator
- Alternator brand option with Stamford / Leroy Somer /Meccalte
- Breaker & ATS option with ABB or Schneider
- 500 hours Spare parts for regular maintenance like Fuel filter, oil filter, air filter, belt and GASK.
Our Generating Set Advantages
- High-pressure pipes for diesel input-outlet
- Stronger heavy-duty rubber anti-vibration mountings
- All base fuel tanks baked enamel finish
- All canopy powder coating (Powder type - 3 years durable, longer service life and less color fading)
- Maintenance-free battery and high-quality battery charger
- High-standard wiring and components (Delixi) relays, indicators, fuse breaker, meters etc.
- Non-return Valve equipped
- Turbocharger protection, moving parts protected and other CE standards (depends on required)
- ONE Hour Testing for all genset (0%-25%-50%-75%-100%-110% loading)
- Fastest Delivery Guaranteed
- Commitment to Reliable Quality and After-sale Services
- Excellent Quality Control and Pre-shipment Inspection
(All alternator, base frame, fuel tank, canopy, ATS cabinets etc are produced in TECGEN factory zone to avoid any off-site quality problems.
FAQ (Frequently Asked Questions)
Q: What is your warranty period?
A: Our warranty period is 18 months or 1500 running hours, whichever comes first. However, depending on the specific project, we can extend the warranty period.
Q: Does your generator come with a global warranty?
A: Yes, most of our products, such as Cummins and Doosan power generators, come with a global warranty. The alternators we use, like Leroy Somer, Stamford, and Marathon, also come with a global warranty, so you don't have to worry about after-sales service.
Q: Do you offer OEM/ODM services?
A: Yes, we do offer OEM services.
Q: What are your payment terms?
A: We accept 20% payment in advance by T/T and the balance 80% shall be paid before shipment or by L/C at sight. We also accept L/C deferred payment terms.
Q: What is your company's production capacity?
A: We can produce 300 sets of diesel generator sets per month and 4000 units of alternators per month.
Q: What is your delivery time?
A: Our normal delivery time is 10-20 working days. However, for special engines and alternators, the delivery time may be longer.
Q: Can you provide us with spare parts if we need spare parts?
A: Yes, we can provide you with spare parts anytime, not limited to the warranty period. Typically, the parts can be delivered within 3-5 days.
