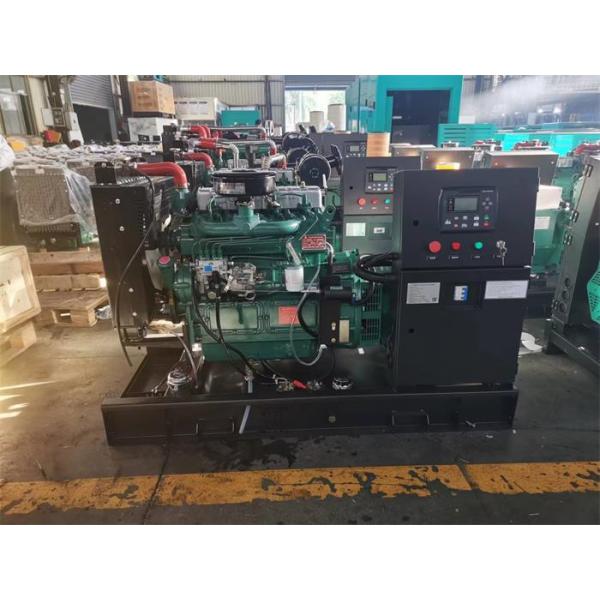

High-performance Ricardo Diesel Generators small portable diesel generator 15kW / 19kVA
Product Description:
Ricardo Diesel Engine Generators are a reliable power solution for any application. The Ricardo Diesel Engine Generators are powered by a 4YT23-20D diesel engine that is capable of running at frequencies of 50Hz and speeds of up to 1500rpm. The generators are capable of running at voltages of 220/230/240/380/400/415V, and can provide a prime output of 15kW/19kVA. The generator is equipped with the Mebay DC52D controller to ensure optimal performance and efficiency. The Ricardo Diesel Engine Generators are a reliable, high quality solution for any application.
Features:
- Product Name: Ricardo Diesel Generators
- Controller: Mebay DC52D
- Options: ATS / Water Heater
- Voltage: 220 / 230 / 240 / 380 / 400 / 415V
- Frequency/Speed: 50Hz / 1500rpm
- Genset Standby Output: 17kW / 21kVA
- Brand: Weifang Ricardo Genset
Technical Parameters:
| Technical Specification: |
| 15kW Ricardo Diesel Generator Set Specification |
| Genset Model | TG21R | TG21RS |
| Open | Silent |
| Frequency | 50Hz |
| Voltage | 400/230V |
| Phase | 3 |
| Rate Current | 27.4A |
| Prime Power | 15kW / 19kVA |
| Standby Power | 17kW / 21kVA |
| Engine Model | 4YT23-20D |
| Alternator Model | TGI184S15 |
| Controller | Mebay DC52D |
| Weight & Dimensions |
| Length (mm) | 1400 | 1900 |
| Width (mm) | 760 | 850 |
| Height (mm) | 1000 | 1100 |
| Weight (kgs) | 600 | 800 |
| Engine Specification |
| Brand | KOFO Ricardo Series |
| Engine Model | 4YT23-20D |
| Prime power (kW) | 20 |
| Injection | Indirect |
| Aspiration | Naturally Aspirated |
| No. of cylinders | 4 |
| Bore of Stroke (mm) | 88 x 95 |
| Displacement (L) | 2.31 |
| Cooling | water |
| Compression Ratio | 18:1 |
| Engine Oil capacity (L) | 5.5 |
| Coolant Capacity ( In radiator) | 5.5 |
| Governor | Mech |
| Air Filter | Dry Element |
| Fuel consumption | at 50Hz |
| 100% Load (L/h) | 4.0 |
| 75% Load (L/h) | 3.0 |
| 50% Load (L/h) | 2.0 |
| 25% Load (L/h) | 1.0 |
| Alternator Specification |
| Brand | Tecgen |
| Model | TGI184S15 |
| Rate Output (kVA) | 19 |
| Pole | 4 |
| Winding Connections | Star |
| Insulation Class | H |
| Enclosure | IP23 |
| Altitude (m) | ≤1000 |
| Voltage Regulator | AVR |
| Steady State Voltage Regulator | 1% |
| Bearing | Single |
| Controller System |
| Brand | Mebay |
| Model | DC52D |
| Functions | Control with AMF module |
| Static with auto. battery charger |
| Emergency stop push button |
| ATS Connection |
| OPTIONAL EQUIPMENTS |
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts |
Applications:
Ricardo Diesel Powered Generators have been manufactured in Fuzhou, China since the brand name Tecgen Ricardo Genset and model number TG21R were founded. The Ricardo Diesel Powered Generators are certified with ISO, CE, SASO and CIQ and with a minimum order quantity of 1 unit, a price of negotiation and delivered in plastic film package in container, it is no wonder why this product is becoming increasingly popular. The delivery time is 10 working days and payment terms can be either T/T or L/C. The supply ability is 400 units per month and the options available are ATS and water heater for a standby output of 17kW or 21kVA. The genset engine model is 4YT23-20D and the controller is Mebay DC52D with a voltage of 220, 230, 240, 380, 400 and 415V.
Customization:
Diesel Ricardo Engine, Rcardo Generator, Weifang Ricardo Genset
Brand Name: Tecgen Ricardo Genset
Model Number: TG21R
Place of Origin: Fuzhou, China
Certification: ISO / CE / SASO / CIQ
Minimum Order Quantity: 1 Unit
Price: Negotiation
Packaging Details: Plastic film package in container
Delivery Time: 10 Working Days
Payment Terms: T/T / L/C
Supply Ability: 400 Units Per Month
Genset Prime Output: 15kW / 19kVA
Controller: Mebay DC52D
Voltage: 220 / 230 / 240 / 380 / 400 / 415V
Frequency / Speed: 50Hz / 1500rpm
Genset Type: Open
Support and Services:
Ricardo Diesel Generators Technical Support and Service
Ricardo Diesel Generators provides a comprehensive technical support and service package, designed to meet the needs of its customers.
We offer a range of services, including:
- In-depth technical advice and support
- Installation and commissioning of generators
- Emergency repair and maintenance services
- Spare parts provision and exchange
- Technical training and operator guidance
Our team of experienced engineers and technicians are always on hand to provide assistance, and our customer service staff are available 24/7 to provide advice and support.
We understand the importance of providing a reliable and efficient service, and we are committed to delivering the highest quality service to our customers.
Packing and Shipping:
Packaging and Shipping of Ricardo Diesel Generators
Ricardo Diesel Generators are packaged and shipped in the following manner:
- Generators are securely strapped to a pallet for ease of transportation.
- Generators are then shrink-wrapped for additional protection and to reduce the risk of damage during transit.
- Generators are shipped in customized crates to ensure their safety during transit.
- Generators are shipped via air or sea depending on the customer's preference.
- The customer is always provided with a tracking number to monitor the progress of their shipment.
FAQ:
Q1: What is the brand name of the Ricardo Diesel Generators?
A1: The brand name of the Ricardo Diesel Generators is Tecgen Ricardo Genset.
Q2: What is the model number of the Ricardo Diesel Generators?
A2: The model number of the Ricardo Diesel Generators is TG21R.
Q3: Where are the Ricardo Diesel Generators manufactured?
A3: The Ricardo Diesel Generators are manufactured in Fuzhou, China.
Q4: What certifications have the Ricardo Diesel Generators received?
A4: The Ricardo Diesel Generators have received ISO / CE / SASO / CIQ certifications.
Q5: What is the minimum order quantity for the Ricardo Diesel Generators?
A5: The minimum order quantity for the Ricardo Diesel Generators is 1 unit.
